ETFE resin is the toughest fluoroplastic. While maintaining the good heat resistance, chemical resistance, and electrical insulation properties of PTFE, it has significantly improved radiation resistance and mechanical properties, with a tensile strength reaching 50 MPa, nearly twice that of PTFE. It is commonly used as a lining for critical components such as pipes, joints, pumps, and valves in fluid transport systems.
ETFE exhibits good processability and formability, balanced physical properties, good mechanical toughness, and excellent corrosion resistance. In particular, its adhesion to metal surfaces is outstanding. Furthermore, its average coefficient of linear expansion is close to that of carbon steel, making ETFE (F40) an ideal composite material for metals, possessing excellent negative pressure resistance. Meanwhile, due to ETFE's anti-aging properties, the service life of pump valve linings is effectively extended.

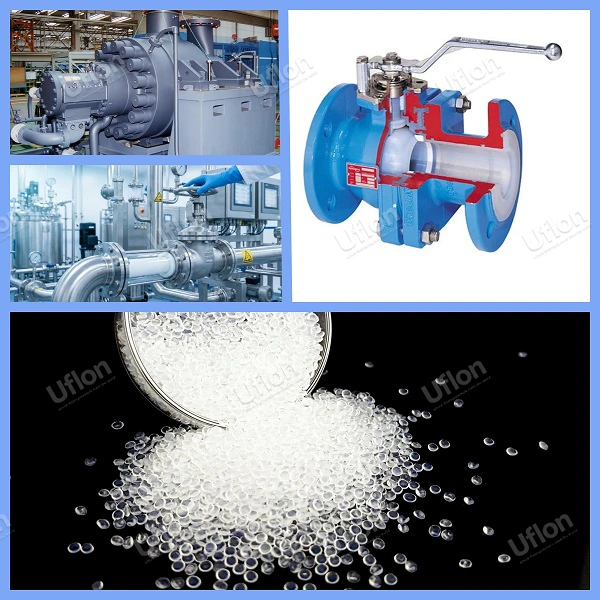

ETFE resin for pump valve lining is suitable for transporting fluids containing highly concentrated acids, alkalis, salts, strong oxidants, and other highly corrosive media, as well as high-temperature liquids. They can effectively prevent pump components from being damaged by the media and prevent pollution of the treatment environment.
| ITEM | UNIT | VALUE | TEST STANDARD | |
|---|---|---|---|---|
| Physical Properties |

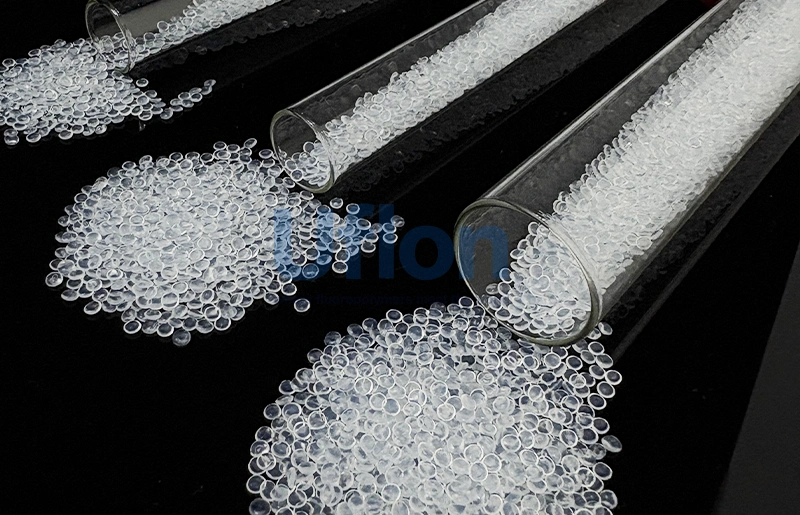

Appearance | Translucent particle | ||
| Melting Index (MFR) | g/10min | 3.0-8.9 | ASTM D1238 | |
| Specific gravity | g/cm³ | 1.72-1.76 | ASTM D792 | |
| Melting Point | ℃ | 250-270 | ||
| Glass transition temperature | ℃ | 80 | ||
| Linear thermal expansion coefficient | 10-5/K | 11-14 | ASTM D696 | |
| Heat distortion temperature (181N) | ℃ | 63 | ASTM D7207 | |
| Thermal conductivity | W/(m・K） | 0.17 | ASTM C177 | |
| Flammability | V-0 | UL94V | ||
| Mechanical Properties |
Tensile strength | Mpa | 45 | ASTM D638 |
| Elongation | % | 380 | ASTM D638 | |
| Flexural strength | Mpa | 23 | ASTM D790 | |
| Flexural modulus | Mpa | 850 | ASTM D790 | |
| Compression modulus | Mpa | 700 | ASTM D695 | |
| Electrical Properties |
Dielectric constant | 2.5 | ASTM D150 103Hz | |
| 2.5 | ASTM D150 106Hz | |||
| Dielectric loss tangent | 0.0007 | ASTM D150 103Hz | ||
| 0.008 | ASTM D150 106 Hz |
Excellent stress crack resistant, suitable for producing thick-walled covered wires,cables, pipes and sheets. It can also be used for linings of pumps, valves and containers.
