ETFE Powder For Electrostatic Spraying

ETFE Powder

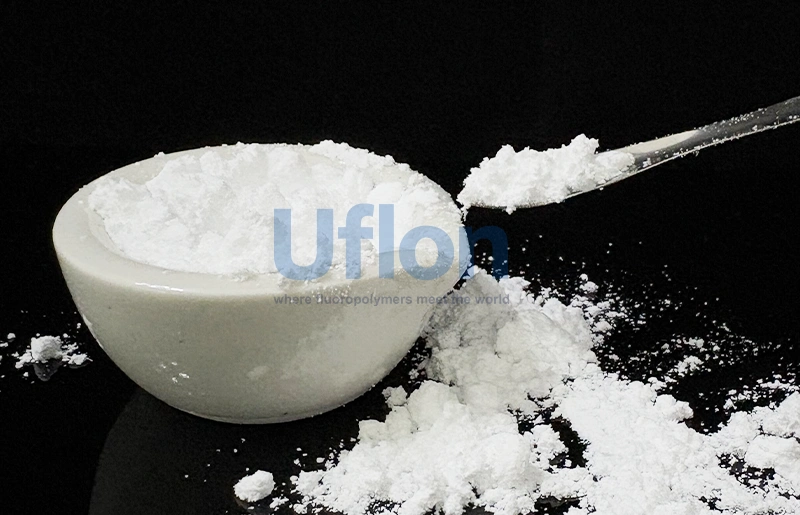

ETFE powder粉末
ETFE powder粉末

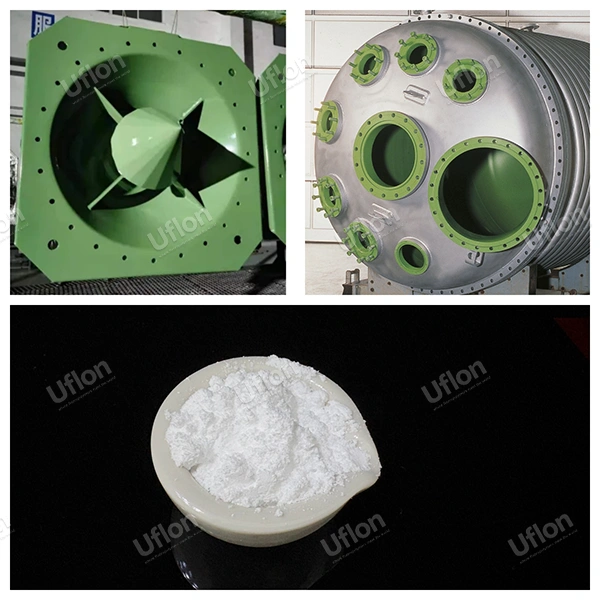

ETFE Powder For Electrostatic Spraying

ETFE powder is one of the forms in which ETFE resin exists, it is often processed by electrostatic spraying technology, to form a uniform coating on the substrates surface.

Introduce ETFE powder for electrostatic spraying



ETFE powder is one of the forms in which ETFE resin exists, it is often processed by electrostatic spraying technology, to form a uniform coating on the substrates surface.

ETFE electrostatic spraying coat the rigid substrate with a protective layer that combines flexibility and weather resistance. And the coating thickness can be precisely controlled according to requirements—from an ultra-thin 50μm layer to an ultra-thick 1000μm layer.

Process steps of ETFE powder for electrostatic spraying



  • Pre-treatment: Sandblasting (e.g., Sa2.5 grade) and degreasing of metal, ceramic and other substrates ensure a rough and clean surface, improving coating adhesion;

  • Spraying and film formation: Electrostatic spraying of charged ETFE powder onto a grounded substrate;

  • Sintering and curing: At a high temperature of 300℃ (some require nitrogen protection), the coating fully levels and cross-links, forming a dense protective layer.



Why choose ETFE powder for electrostatic spraying?



Outstanding weather resistance

ETFE spraying coating can withstand extreme temperatures ranging from -200℃ to 150℃, and will not yellow, crack, or degrade even under strong UV radiation, acid rain, or high humidity.

Extreme corrosion resistance

For reaction vessels and pipelines in industries such as petrochemicals and pharmaceuticals, strong acids, strong alkalis, and organic solvents are "everyday threats." ETFE spraying coating can form a dense molecular barrier, preventing corrosive media from penetrating into the substrate.

Non-stick , easy to clean

ETFE coatings have extremely low surface tension , resulting in strong oleophobic and hydrophobic properties, making them ideal for medical devices and food processing equipment.

Common application scenarios of ETFE powder for electrostatic spraying



  • Membrane structures for building

  • Photovoltaic support systems

  • Exterior wall cladding panels for buildings

  • Reaction vessels, electroplating tanks

  • Automotive engines components (such as exhaust pipes)



About Uflon's ETFE powder for electrostatic spraying

Grade MFR(g/10min) Application
UF-10 10-15 Electrostatic spraying, for thick film100-1000um.
UF-15 10-15
UF-19 10-15
UF-20 10-15 Electrostatic spraying, for thin film 50-300um.
