FEP resin can be melt-extruded into films with a smooth surface and excellent performance in all aspects. The films can be heat-sealed, welded, metallized, multilayered, and vacuum-formed.
Resistant to most chemicals and solvents, and chemically inert;
Excellent barrier properties against gases and liquids.
FEP film can be used for a long time at 205℃, the melting point is 260℃ around.
High dielectric strength, with very low dielectric constant and dielectric loss.
Excellent anti-stick and low-friction properties;
High impact resistance and tear resistance;
Acceptable mechanical properties even at extremely low temperatures.
FEP-made film can withstand prolonged outdoor exposure while maintaining the excellent performance;
Excellent UV transmittance.
Raw material preparing - melt extrusion - molding sheet - cooling and shaping - surface corona treatment - trimming and winding

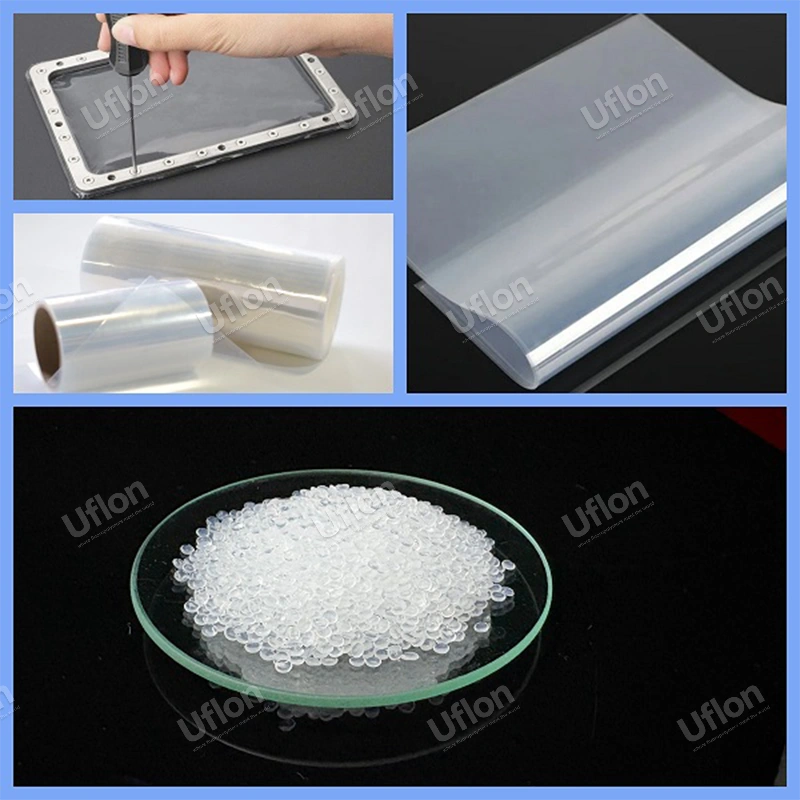

3D Printing
Gas Sampling Bags
Pharmaceutical Rubber Stoppers
Composite Materials
Welding Film
Corrosion-Resistant Pipe Linings
| No. | ITEM | UNIT | VALUE | TEST STANDARD |
|---|---|---|---|---|

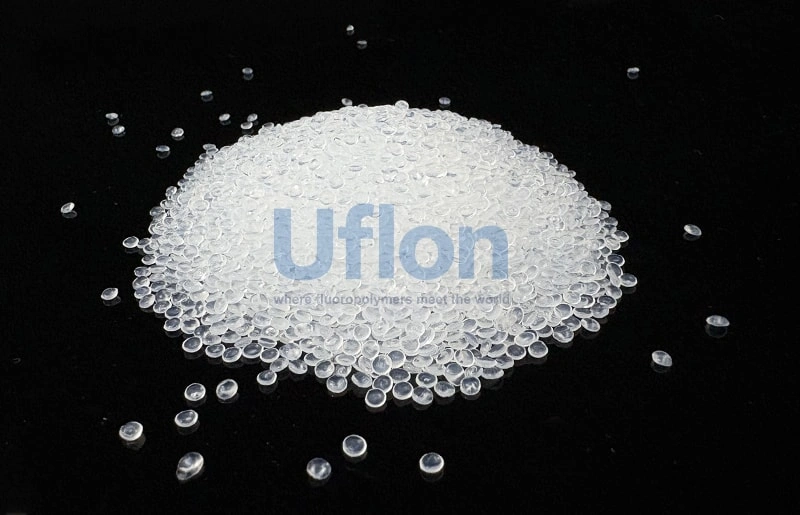

| 1 | Appearance | Translucent particle | ||
| 2 | Melting Index (MFR) | g/10min | 5.1-8.0 | ASTM D2116 |
| 3 | Tensile strength ≥ | Mpa | 22.0 | ASTM D638 |
| 4 | Elongation ≥ | % | 310 | ASTM D638 |
| 5 | Relative Density | g/cm³ | 2.12-2.17 | ASTM D792 |
| 6 | Melting Point | ℃ | 260±10 | ASTM D3418 |
| 7 | Dielectric Constant(106Hz)≤ | / | 2.15 | ASTM D150 |
| 8 | Dissipation Factor(106Hz) ≤ | / | 7.0×10-4 | ASTM D150 |
An universal plastic that used for extrusion processing, it mainly used in wire insulation layer, tubes, films etc.
