ETFE resin is the "specialty elite" of the plastics industry---resistant to high temperatures, corrosion and extreme environments, it is used in everything from small precision components to large-scale Olympic venues. With its unique advantages of transparency ,mechanical strength and radiation resistance, ETFE has become a "star material" in construction, new energy, aerospace and other fields.

About ETFE resin

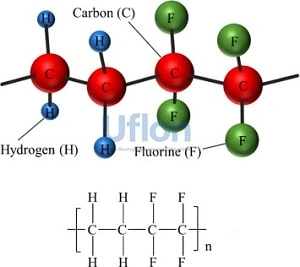

ETFE is a linear polymer formed by alternating copolymerization of ethylene monomer (CH₂=CH₂) and tetrafluoroethylene monomer (CF₂=CF₂) in a 1:1 molar ratio.

It retains the core advantages of fluoroplastics, such as weather resistance and corrosion resistance, while significantly optimizing mechanical properties and processability.

From a molecular structure perspective, ETFE resin has fluorine atoms uniformly wrapped around a carbon atom skeleton, forming a stable "protective layer" that allows it to resist extreme environments such as ultraviolet radiation, acid and alkali corrosion, and oxidation, meanwhile has excellent tensile strength and ductility.

Three core advantages of ETFE resin

① High light transmittance: Up to 95% light transmittance, comparable to glass, selectively allowing visible light from sunlight to pass through while blocking infrared and ultraviolet rays, providing both light transmission and heat insulation.

② Superior toughness: Density of only about 1.7g/cm³, greatly reducing structural load, tensile strength reaches 40-50MPa, it can withstand impacts from strong winds, hail, and other extreme weather conditions.

③ Extreme weather resistance: Outdoor service life of over 25 years, able to withstand extreme temperatures from -200℃ to 150℃, resistant to ultraviolet rays, acid rain, and chemical corrosion, with performance not diminishing under harsh environments.

Processing advantages of ETFE resin

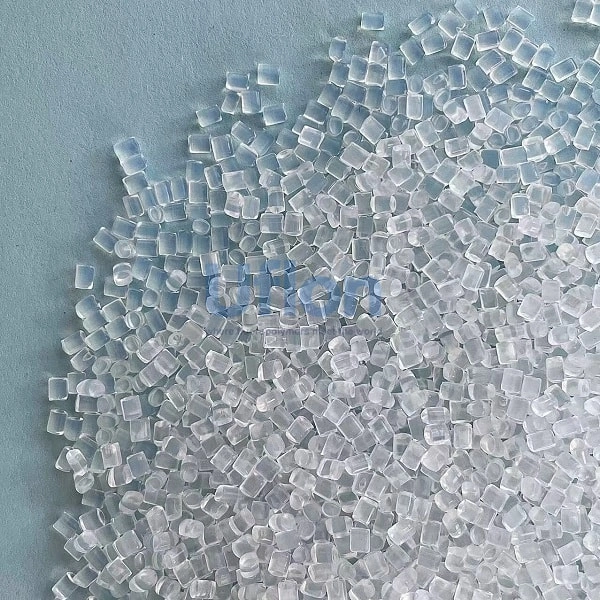

ETFE has good thermoplasticity and can be molded through a variety of conventional processes such as welding, injection molding, extrusion, blow molding, powder coating and rotational lining. It can be made into a variety of products such as films, sheets, pipes, and profiles to meet the customized needs of different fields.

Application fields of ETFE resin

1.Architecture

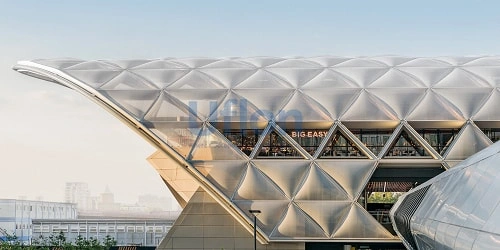

Membrane structure architecture: As the core material of "air cushion membrane," it forms a closed unit after being filled with air, combining load-bearing and heat insulation functions.

Glass curtain wall alternative/supplement: Used for partial curtain walls and skylights in super high-rise buildings, reducing the building's self-weight while improving light transmission.

2.Industrial field

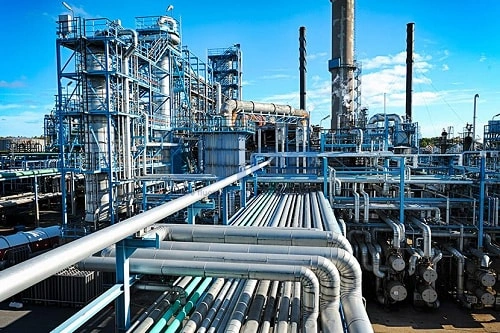

Corrosion-resistant pipes, valves, and seals: used in the chemical and pharmaceutical industries for conveying corrosive media such as strong acids and strong alkalis.

3.Agricultural field

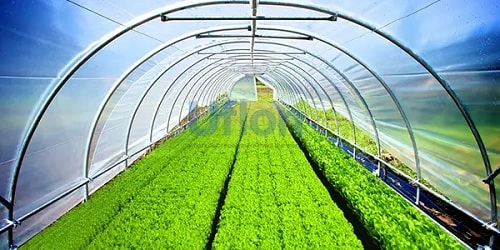

High-end greenhouse film: compared with traditional plastic film, ETFE film has more uniform light transmission and a longer outdoor service life.

Botanical garden: Balancing light transmission and heat insulation, suitable for creating a tropical plant growth environment.

4.New Energy field

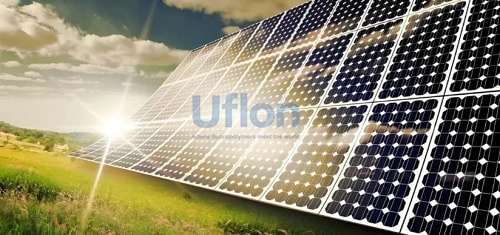

As a panel material for photovoltaic modules, ETFE resin improves the weather resistance of the modules and enables them to be lightweight.

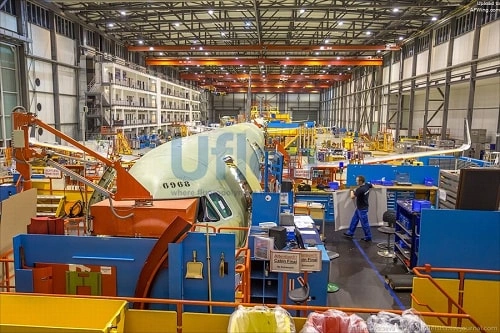

5.Aerospace field

Rely on lightweight and high-temperature resistance, ETFE can be used as flame-retardant components for aircraft interiors and sealing materials for spacecraft.

Cross-linked ETFE resin can be used as wires and cables in aerospace environments, exhibiting excellent radiation resistance, electrical and mechanical properties, and a long-term operating temperature range of -100~200℃.

6.Electronics and electrical field

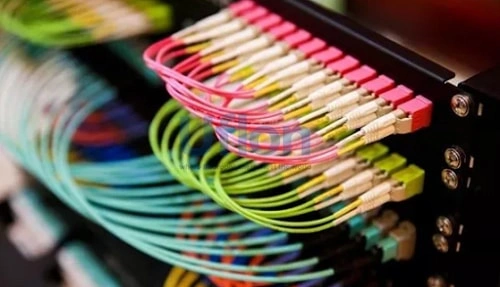

ETFE is used as insulation material for wires and cables, and can also be used to make housings for high-end electronic devices, providing good electrical performance and mechanical protection.

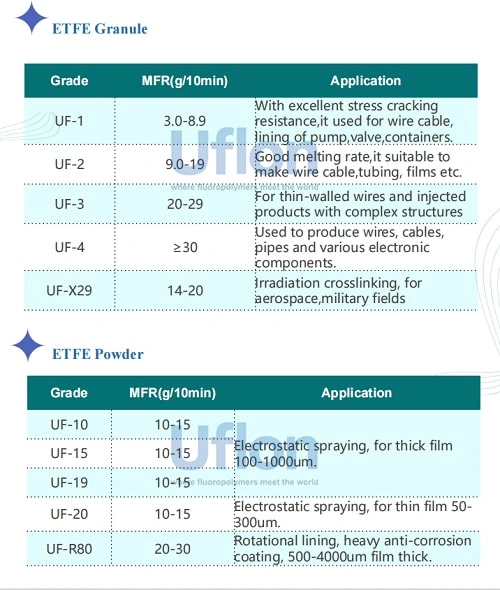

About Uflon’s ETFE resin

As a professional and service-oriented fluoropolymer manufacturer,Uflon specialized in ETFE material production and application guidance, with experienced technical team and advanced production technology, we bring stable and reliable solutions for many customers, across various fields including wires and cables, photovoltaic panels, building membrane structures, and chemical corrosion protection.

For more information on ETFE, please contact Uflon.
